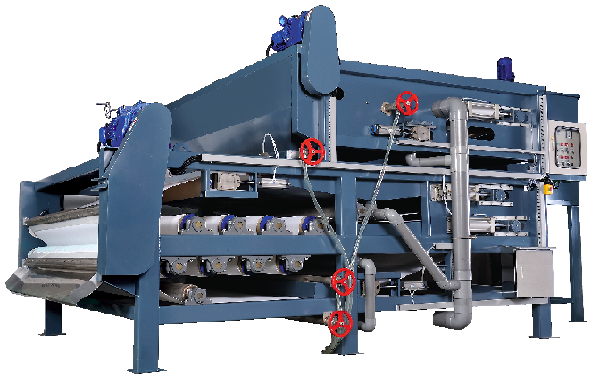

Belt Press NBD-T TYPE

Belt Press System

Self–Cleaning Gravity Thickening Belt Press

Self-Cleaning Mechanism: When the spray nozzles are clogged, just turn the red wheel to clean out the obstruction instead of move off the whole washing pipe and clean each spray nozzle.
In the red wheel, it equipped with st. st. brushes which can effectively and reliably remove foreign objects that cause nozzle blockage.

1. Material: stainless steel  (SUS-304 / SUS-316)

2. Surface treatment: Anti-rust painting, Stainless steel passivation (According to customer needs)

3. Production can be modified according to customer drawings

4. High quality, high efficiency, low energy consumption, low maintenance cost

5. Origin: Taiwan

Inquiry

Model

Belt
Width

Capacity
(m3/hr)

Dry Sludge
(Kg DS/hr)

Belt
Velocity
(M/min)

Usage Power (HP)

Wash
Water
(m3/hr)

Dimensions
(L.W.H)
mm

Weight
(kg)
Drive

Flocculation
Tank

Gravity

Drainage

NBD-T75

750

4~9

40~90

 2~8

1/2

1/4

1/2

5.8

3191
1488
2056

1100

NBD-T100

 1000

9~14

90~140

  2~8

1/2

 1/4

1/2

7.7

3191
1738
2056

1360

NBD-T125

 1250

14~20

140~200

  2~8

1/2

 1/4

1/2

9.6

3191
1988
2056

1650

NBD-T150

 1500

20~28

200~280

  2~8

1

 1/2

1/2

10.6

4255
2265
2287

2570

NBD-T175

1750

28~36

280~360

 2~8

1

1/2

1/2

12.6

4255
2515
2287

2870

NBD-T200

2000

36~60

360~600

 2~8

3

1

1

14.5

5956
2973
3029

4290

NBD-T250

2500

55~80

550~800

 2~8

5

1

1

17.4

5956
2973
3029

5170

NBD-T300

3000

69~110

690~1100

 2~8

5

1

1

21.3

5956
3973
3029

6050

※ The data above is for reference only. Sludge condition and characteristics produce varied results.
